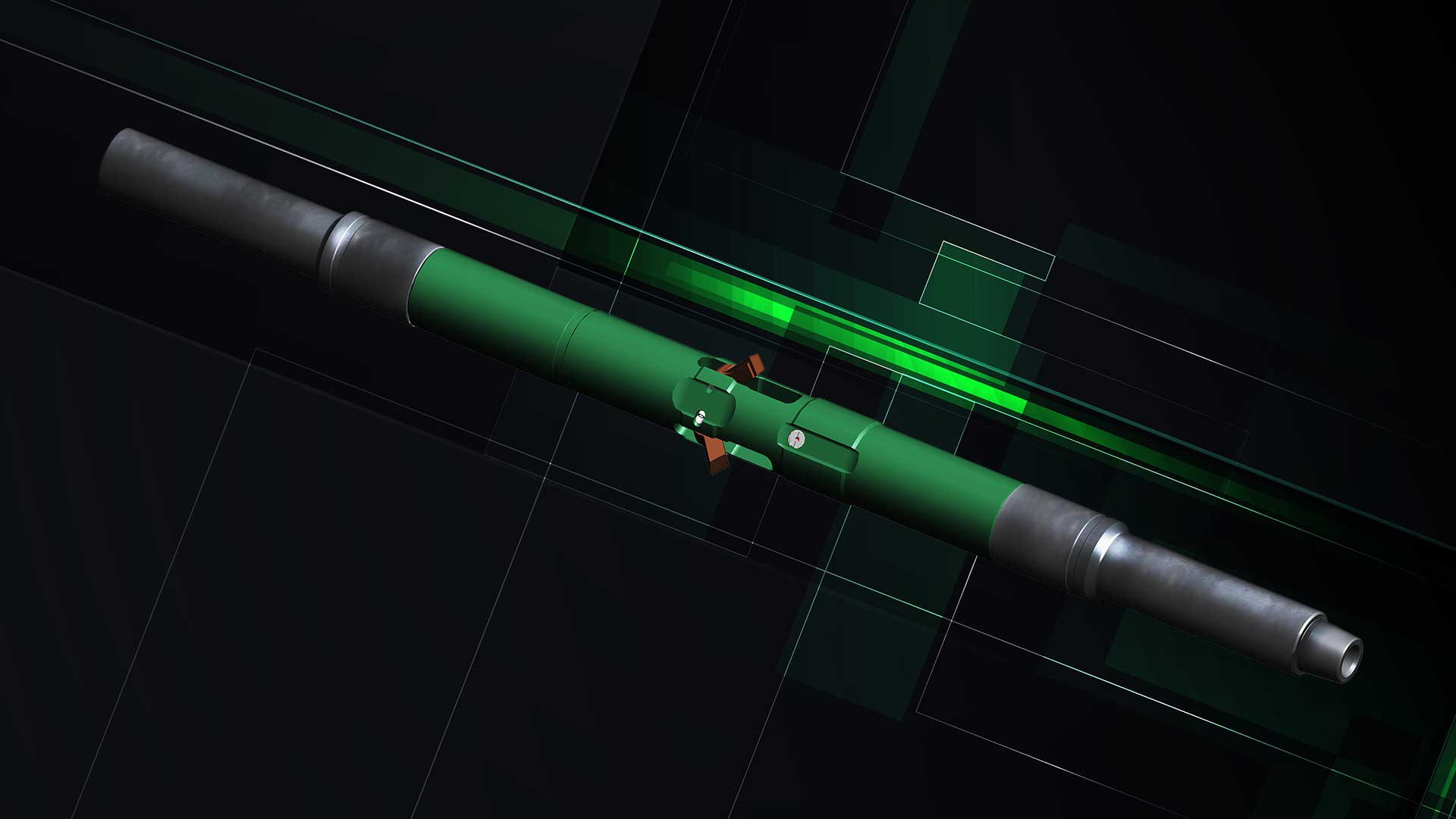

The SAVR-CP Big Bore Pipe Cutter is a hydraulically powered tool designed to cut casing strings with precision and control.
It features a large through-bore that enables cementing operations to be completed in the same run without the risk of cement setting inside the tool. This cutter can be combined with other OTL and third-party technologies to perform multiple operations and pipe cutting in a single trip, delivering major time and cost savings.
Key Features
Hydraulic activation based on pressure drop
The tool uses circulation-induced pressure to activate the Knife Arms, which vary in length depending on the required cutting diameter.
Cement-compatible design
A big through-bore allows cementing without obstruction, making it possible to set plugs and place cement correctly without pulling out of hole.
Tool integrity and control
Knife Arms remain locked while running in-hole to prevent early deployment. Cutting starts only after dropping an activation ball. The process is monitored using torque and controlled by adjusting the circulation rate. As cutting continues, the piston assembly moves and pivots the Knife Arms to perform the cut. A pressure drop confirms when the preset diameter has been reached, and the cutter automatically retracts during retrieval.
Operational Advantages
Reduced time on site
Save up to 50 percent of the time compared to conventional cutting methods by combining tasks in a single trip.
Enhanced well integrity
Make clean, controlled cuts through casing to preserve well structure and enable accurate cement barrier placement.
Lower non-productive time
Execute multiple operations such as setting and testing cement plugs, displacing fluids, setting bridge plugs, and recovering casing without additional trips.
Multi-Function Capabilities
- Set and load-test cement plugs
- Perform multiple cuts through single or multiple casing strings
- Displace and circulate cement or other fluids
- Set bridge plugs and balance plugs in the same run
- Recover casing when combined with SAVR-CP Hydraulic Spear or Packer
- Slot casing and remove settled barite in the annulus
- Rely on a durable Knife design that extends operational life and performance
The SAVR-CP Big Bore Pipe Cutter brings a new level of efficiency and reliability to pipe cutting and multi-task wellbore operations.
